BAM-test chart no. UE34; Colorimetric data D65
Coordinate systems of 5 step scales for 10 hues
LAB*TCH for MRS18 and LAB*TCH for MRS18

Colour Reproduction, Yield and/or Emission:
Colour Workflow (CW) by the input operators no. 0 cmy0* setcmykcolor and
different output PS operators and without or with MTL code for Output Linearisation (OL)

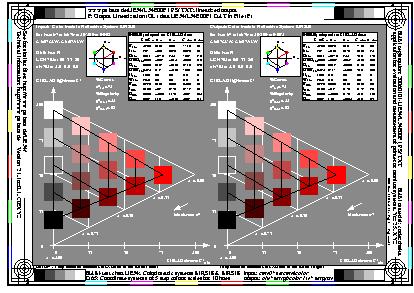

Fig. LN1: Output layout of all the L...NP files with the format A6 (here) and A4 in the following tables no. 1 to 3, see
L34E00N1.PS / TXT / JPG / PDF


Fig. LF1: Output layout of all the L...FP files with the format A6 (here) and A4 in the following tables no. 1 to 3, see
L34E00F1.PS / TXT / JPG / PDF


Fig. SF1: Output layout of all the S...FP files with the format A6 (here) and A4 in the following tables no. 1 to 3, see
S34E00F1.PS / TXT / JPG / PDF


Fig. QF1: Output layout of all the Q...FP files with the format A6 (here) and A4 in the following tables no. 1 to 3, see
Q34E00F1.PS / TXT / JPG / PDF

Remark 1: The files* of Tables 1 to 3 produce 10 pages for 10 hues and not only the first page for example shown in Fig. LN1

Remark 2: The files* of Tables 1 to 3 produce the format A4 landscape.

Remark 3: Similar files with input of "olv* setrgbcolor" instead of "cmy0* setcmykcolor" are in the directory TExx (xx=00 bis 99) instead of the directory UExx (xx=00 bis 99).

Input PS operators no. 0 cmy0* setcmykcolor
and three identical start files

*NP.PS / .TXT /.PDF
100 / 100 / 300 kByte

Output
PS operator
parameter
i*ptrsc

No colorimetric transfer from the
input PS operators no. 0 cmy0* setcmykcolor
to the output PS operators no. 0 cmy0* setcmykcolor
defined by i*ptrsc

Output Linearisation by File (F)
with device CIELAB data
of device L
in files *FP.PS / TXT / PDF
200 / 200 / 300 kByte

PostScript MTL code in File (F)
with device CIELAB data
of device L
100 kByte
L34E00NP.PS / TXT / PDF 1   L34E00FP.PS / TXT / PDF L34E00FP.DAT
S34E00NP.PS / TXT / PDF 1   S34E00FP.PS / TXT / PDF S34E00FP.DAT
Q34E00NP.PS / TXT / PDF 1   Q34E00FP.PS / TXT / PDF Q34E00FP.DAT
Table 1: Files for the PDF start and linearised output with one of three linearising data (L, S, Q) in the File (F); Input PS operators no. 0 cmy0* setcmykcolor in the NP file and equal output PS operator in the FP file.

Remark: The files* of Table 1 are intended for a PDF output with one of three linearisation data (L, S, Q) in the File (F) and not for a PS output.

Input PS operators no. 0 cmy0* setcmykcolor
and three indentical start files

*NA.PS / .TXT
100 / 100 kByte

Output
PS operator
parameter
i*ptrsc

No colorimetric transfer from the
input PS operators no. 0 cmy0* setcmykcolor
to the output PS operators no. 0 cmy0* setcmykcolor
defined by i*ptrsc

Output Linearisation by File (F)
with device CIELAB data
of device L
in files *FA.PS / TXT
200 / 200 kByte

PostScript MTL code in File (F)
with device CIELAB data
of device L
100 kByte
L34E00NA.PS / TXT 1   L34E00FA.PS / TXT L34E00FA.DAT
S34E00NA.PS / TXT 1   S34E00FA.PS / TXT S34E00FA.DAT
Q34E00NA.PS / TXT 1   Q34E00FA.PS / TXT Q34E00FA.DAT
Table 2: Files for the PS start and linearised output with one of three linearising data (L, S, Q) in the File (F); Input PS operators no. 0 cmy0* setcmykcolor in the NA file and equal output PS operator in the FP file.

Remark: The files* of Table 2 serve are intended for a PS output and not for a PDF output.

Input PS operators no. 0 cmy0* setcmykcolor
and three identical start files

*NP.PS / .TXT /.PDF
100 / 100 / 300 kByte

Output
PS operator
parameter
i*ptrsc

No colorimetric transfer from the
input PS operators no. 0 cmy0* setcmykcolor
to the output PS operators no. 0 cmy0* setcmykcolor
defined by i*ptrsc

Output Linearisation with Startup (S)
without device CIELAB data
of device L
in files *SP.PS / TXT / PDF
200 / 200 / 300 kByte

PostScript MTL code for Startup (S)
with device CIELAB data
of device L
100 kByte
L34E00NP.PS / TXT / PDF 1   L34E00SP.PS / TXT / PDF *) L34E00SP.DAT
S34G00NP.PS / TXT / PDF 1   S34G00SP.PS / TXT / PDF *) S34G00SP.DAT
Q34G00NP.PS / TXT / PDF 1   Q34G00SP.PS / TXT / PDF *) Q34G00SP.DAT
Table 3: Files for the PDF start and linearised output with one of three linearising data (L, S, Q) in the Startup (S); Input PS operators no. 0 cmy0* setcmykcolor in the NP file and equal output PS operator in the FP file.

*) Please transfer e. g. the PDF file S34E00SP.PS with the file S34E00SP.DAT in the Distiller Startup (S) Directory, which uses the parameter i*ptrsc=1. Then this PDF-file produces the same output as the file S34E00FP.PDF of the Table 1.

Remark: The files* of Table 3 are intended for a PDF output with linearisation data (L/S/Q)34E00SP.DAT in the Distiller Startup (S) directory and not for a PS output.

-------
